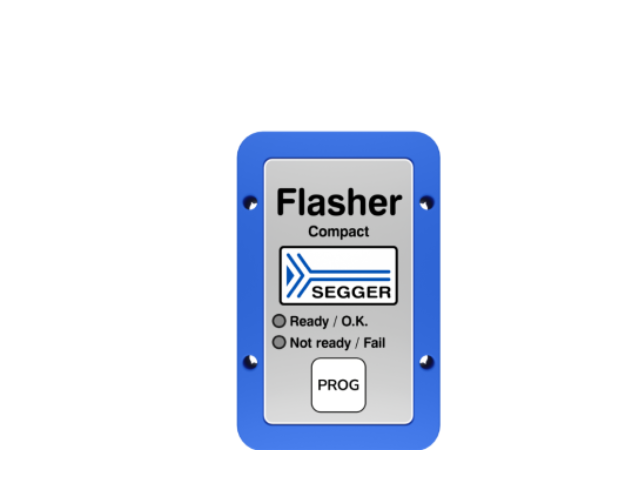

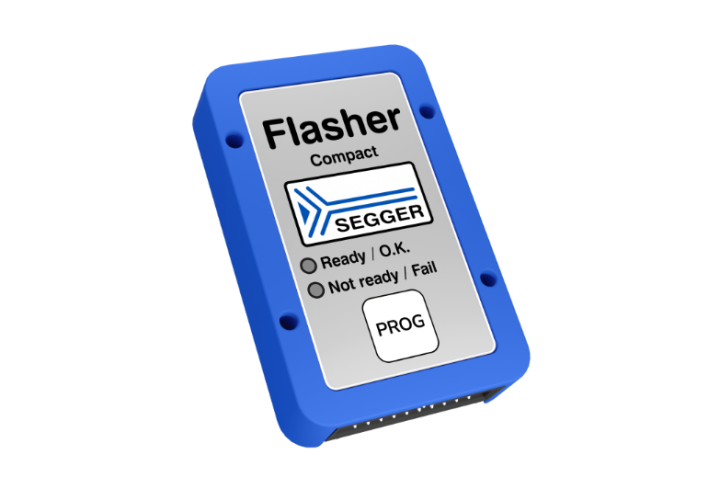

Flasher Compact – World-Leading In-Circuit Programmer

Every production engineer knows the same tension: the programmer needs to be fast, reliable, and small enough to fit into tight rigs. If you want to optimize your manufacturing floor, exploring tools like the Sightsys Engineering Solutions portfolio is a great start. Volumes climb quickly, requiring gang programming and support for new devices. A simple flashing station fast becomes a complex project.

SEGGER built its Flasher line around this problem. UM08022_Flasher sits at the center. It is a universal, in-circuit flash programmer housed in a footprint smaller than a credit card. It drops directly into automated test equipment (ATE) where board space is scarce. Pair it with a Flasher Hub-4 or Flasher Hub-12 to flash up to 24 devices in parallel. Pair it with the Flasher SDK to support custom silicon and test sequences.

SEGGER Flasher Compact: The Core of the System

SEGGER Flasher Compact solves the bulkiness of legacy in-system programmers. Measuring 70 mm x 45 mm x 18 mm and weighing 40 grams, it mounts directly on test fixtures via four mounting holes.

Despite its compact size, it retains full programming power. The SEGGER Flasher Compact programs internal and external flash memory across tens of thousands of microcontrollers and SoCs. If you need broader background, read our guide on production flash programming tools.

USB-C, Power, and Deployment

The SEGGER Flasher Compact connects via a single USB-C cable for power and data.

Power Draw: Maximum 130 mA at idle.
Target Supply: Up to 400 mA to a 5 V target (supported voltages: 1.2 V to 5 V).
Cable Length: Recommended 20 cm connection.

Short signal paths ensure cleaner signal integrity and higher throughput than long cable runs.

Three Operating Modes

PC-Based Operation: Tethered via USB for manual control using J-Flash.
Standalone Operation: Independent JTAG/SWD programming using 128 MB of onboard flash memory.
File-Access Mode: Direct file management over USB or Ethernet.

Built for Serialization

Modern production demands unique per-unit data like serial numbers or MAC addresses. SEGGER Flasher Compact handles this natively by applying patch data dynamically to base firmware images.

Scaling Up: Flasher Hub-4 and Flasher Hub-12

Single-unit throughput has a ceiling. When volume outpaces a single channel, parallel gang programming via the Flasher Hub family takes over.

Flasher Hub-4: Manages up to 4 units in Direct Mode, or up to 24 channels in Flex Mode.
Flasher Hub-12: Drives up to 12 units directly, scaling to 24 channels with minimal wiring complexity.

Both hubs operate independently over TELNET or RS232, featuring built-in web servers (emWeb) and FTP servers for CI/CD pipeline integration.

Flasher SDK: Custom Silicon Support

When engineers face newly released MCUs or proprietary chips, the Flasher SDK eliminates bottlenecks:

Flasher Apps: Sandboxed applications running directly on the hardware for advanced testing and programming.
Flasher Device Packs: Custom target programming sequences and initialization scripts.

Putting the Pieces Together

The SEGGER ecosystem scales alongside your operations: starting with a single SEGGER Flasher Compact, expanding to a 24-channel array with a Flasher Hub, and extending custom support via the SDK.
