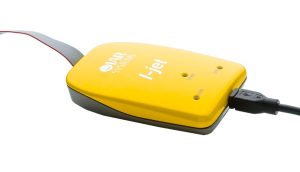

IAR- I-JET JTAG Debugging probe enabling powerful features in IAR Embedded Workbench for Arm

Native support in IAR Embedded Workbench

Integrated tools simplify your development workflow. Our feature-rich in-circuit debugging probe enable powerful features in IAR Embedded Workbench.

Best in class performance

I-jet provides a fast debugging platform via JTAG and SWD/SWO with download speeds of up to 1,89 MByte/sec and support for SWO speeds of up to 60MHz. The JTAG and Serial Wire Debug (SWD) clocks up to 32MHz (no limit on the MCU clock speed).

Broad support for Arm

Supports all Arm7/Arm9/Arm11 cores, Arm Cortex-A/R/M cores from all Silicon Vendors with Automatic core recognition and JTAG/SWD detection. Also supports Micro Trace Buffer (MTB) for ARM Cortex-M0+.

Power Debugging

Power Debugging provides developers with information about how the software implementation of an embedded system affects the system’s power consumption. I-jet can supply Target power of up to 400mA and consumption can be measured with ~200µA resolution at 200kHz.

Details and probe comparison

Specifications

General

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
USB connection	High Speed USB 2.0	SuperSpeed USB 3.0	SuperSpeed USB 3.0	SuperSpeed USB 3.0
USB speed	480 Mbps	5 Gbps	5 Gbps	5 Gbps
Powered through USB	✔	✔	✔	✔
Maximum target power (5V) supplied	400 mA	400 mA	400 mA	400 mA
First supporting version of IAR Embedded Workbench for Arm	6.30.8	7.30.3	7.80.1	7.70.1

Included adapters

I-jet I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm

MIPI-10 ✔ ✔ ✔ ✔

MIPI-20 ✔ ✔ ✔ ✔

Mictor-38 ✔

Optional adapters

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
MIPI-20 to ARM-20	Available	Available	Available	Available
MIPI-20 Isolated (ETM not supported)	Available	Available	Available	Available

Core support

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
Arm7/Arm9/Arm11	✔	✔ (no ETM trace)	✔ (no ETM trace)	✔ (no ETM trace)
Arm Cortex-M	✔	✔	✔	✔
Arm Cortex-R	✔	✔ (1/2/4 bit ETM trace only)	✔ (1/2/4 bit ETM trace only)	✔
Arm Cortex-A	✔	✔ (1/2/4 bit ETM trace only)	✔ (1/2/4 bit ETM trace only)	✔

Interfaces

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
JTAG	✔	✔	✔	✔
SWD	✔	✔	✔	✔
cJTAG	✔	✔	✔	✔
SWO UART/Manchester encoding	✔	✔	✔	✔
Target debug I/O voltages supported	1.65V to 5.5V	1.2V to 5V	1.2V to 5V	1.2V to 5V

Trace features

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
ETM trace buffer		64 MB	256 MB	256 MB
Trace data collection		1,2, and 4-bit	1,2, and 4-bit	1,2,4,8 and 16-bit
Maximum ETM trace clock		150 MHz	150 MHz	350 MHz
Maximum ETM bandwidth		1.2 Gbps	1.2 Gbps	11.2 Gbps
Automatic clock/data skew adjustment		✔	✔	✔
Automatic clock/data threshold adjustment				✔
ETB/MTB Trace support	✔	✔	✔	✔

Performance

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace Arm
JTAG/SWD speed	48 MHz	100 MHz	100 MHz	100 MHz
SWO sampling frequency	96 MHz	200 MHz	200 MHz	200 MHz
SWO max. bandwidth	~30 Mbps	~60 Mbps	~60 Mbps	~60 Mbps
Download speed (RAM)	1.89 MByte/s	3.73MByte/s	3.73MByte/s	3.73MByte/s
Power sampling resolution	~160 µA	~160 µA	~160 µA	~160 µA
Power sampling rate	200 ksps	200 ksps	200 ksps	200 ksps

Functionality

	I-jet	I-jet Trace CM L	I-jet Trace CM XL	I-jet Trace for Arm
Automatic core recognition	✔	✔	✔	✔
Code breakpoints	✔	✔	✔	✔
Data breakpoints	✔	✔	✔	✔
Flash breakpoints	✔	✔	✔	✔
Interrupt logging	✔	✔	✔	✔
Data logging	✔	✔	✔	✔
Call stack trace	With ETB	✔	✔	✔
Cycle counter (For Cortex-M devices)	✔	✔	✔	✔
Code coverage	Sampled/Full with ETB/MTB	Full	Full	Full
Function profiling	Sampled/Full with ETB/MTB	Full	Full	Full
Instruction trace	Instruction trace	Full	Full	Full
